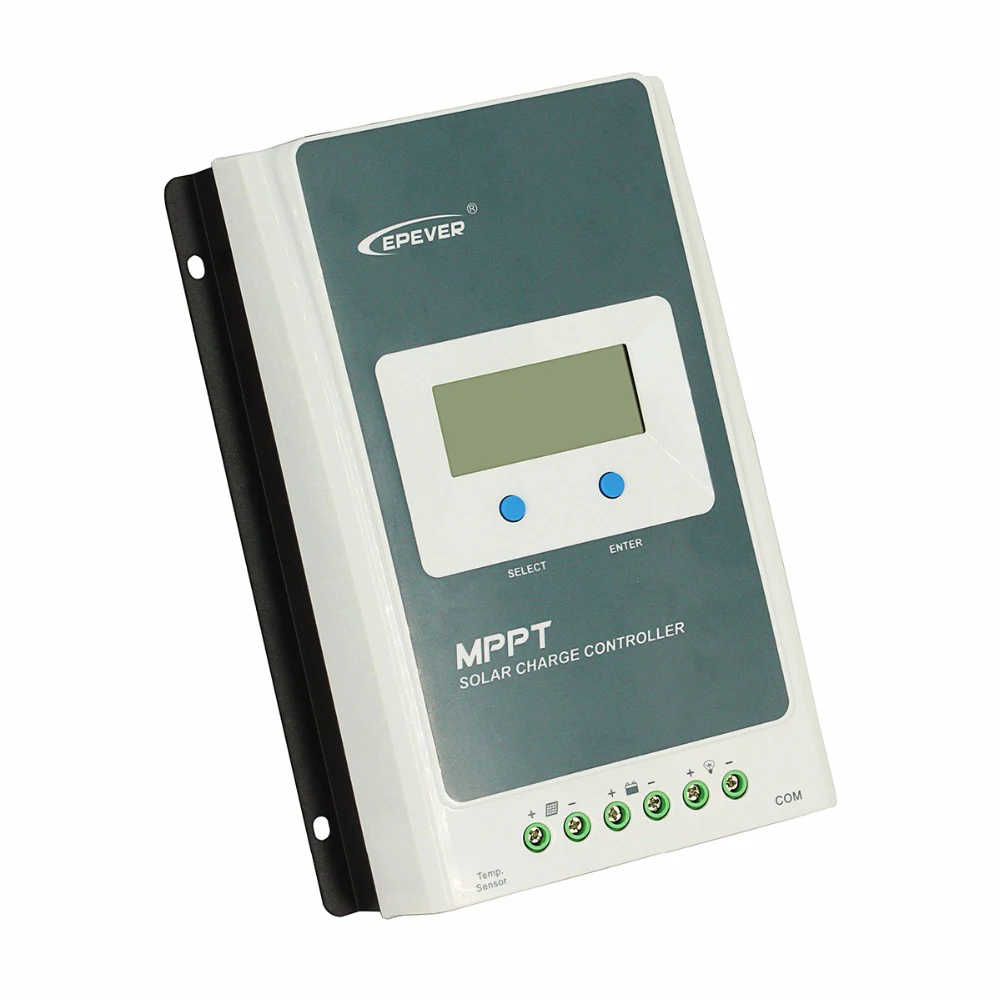

Tracer3210AN MPPT 30A Solar Charge Controller

$160.71 $136.61

Specs:

  • Current Charge: 30A
  • Battery Voltage: 12V – 24V
  • Max PV Input: 150V

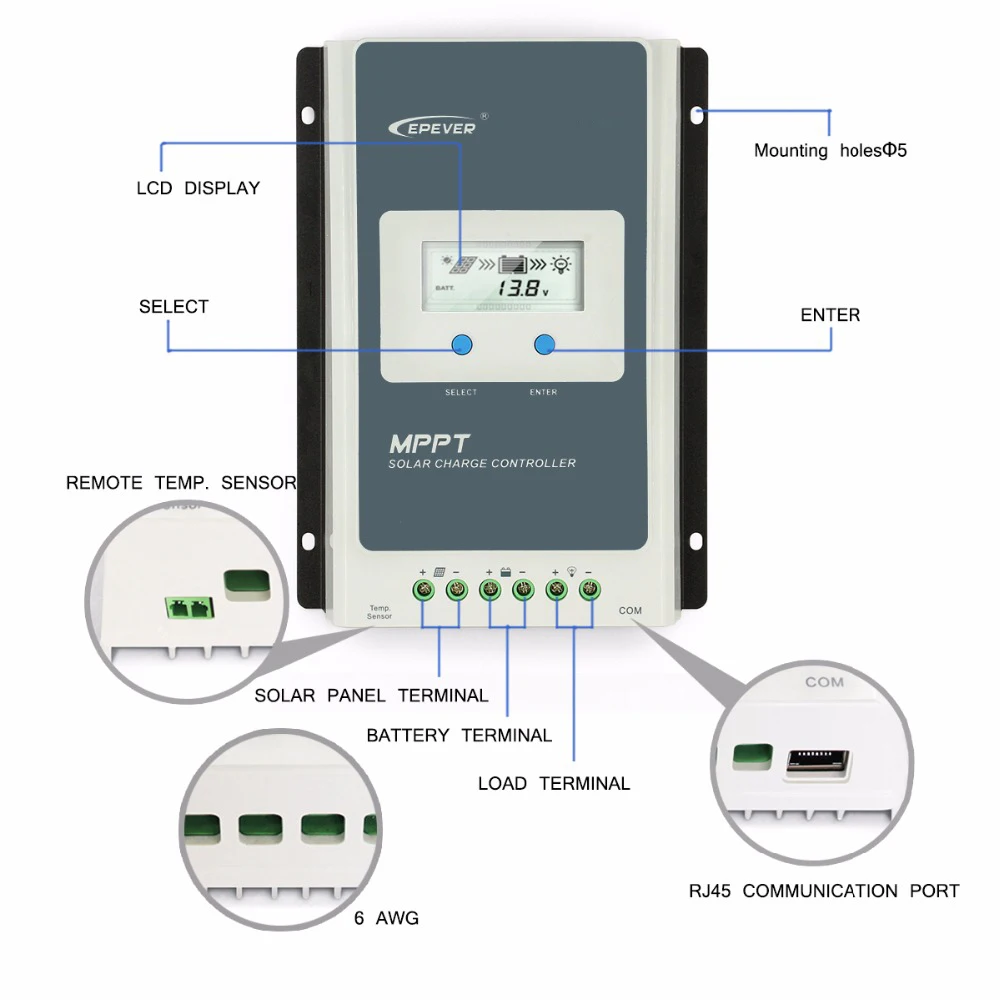

  • RJ45 communication port
  • x6 AWG ports

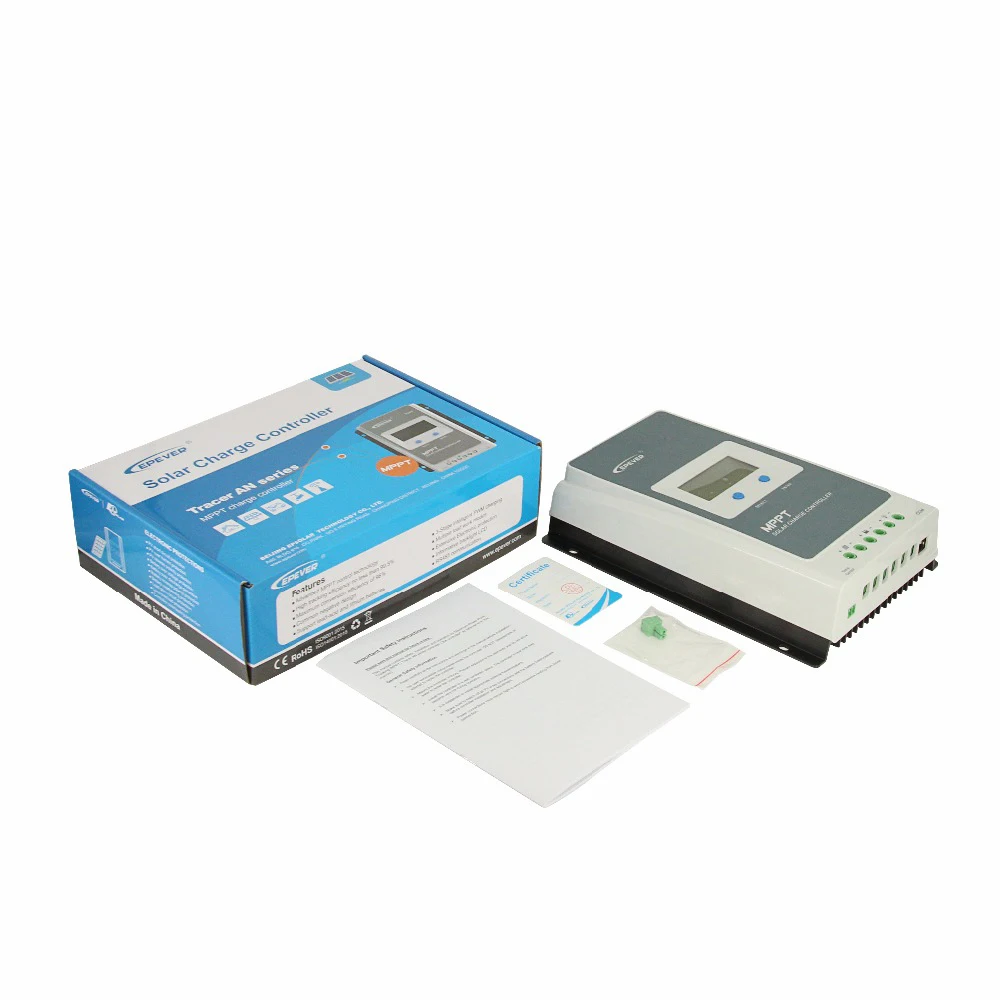

Package Includes:

  • x1 solar inverter
  • x1 adapter
  • x1 manual
United States
Clear
SKU: 4000058424102 Category:

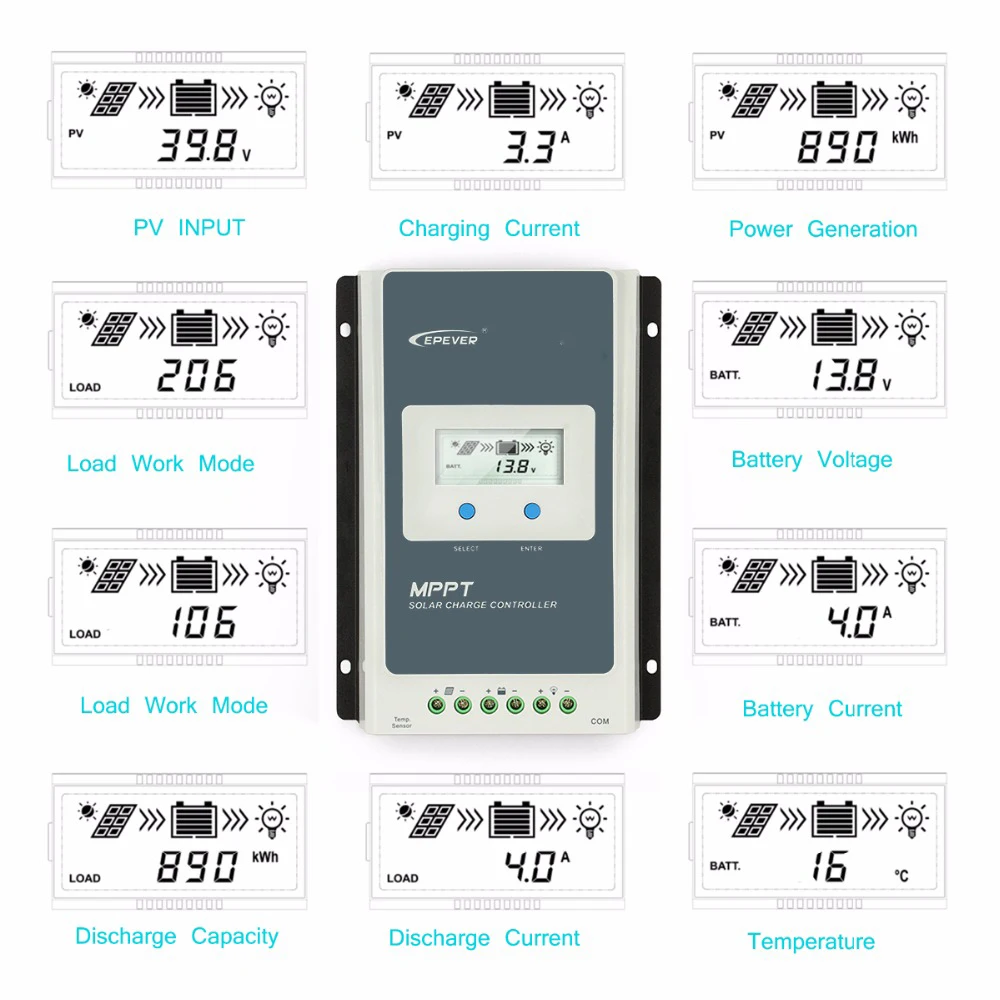

This controller is designed with a common negative option and uses an advanced MPPT control algorithm. The face of the unit is outfitted with a simple LCD. This Tracer unit is built to minimize the point loss rate and loss time. It can also track the powerpoint so that you can achieve the max energy capabilities of solar modules.

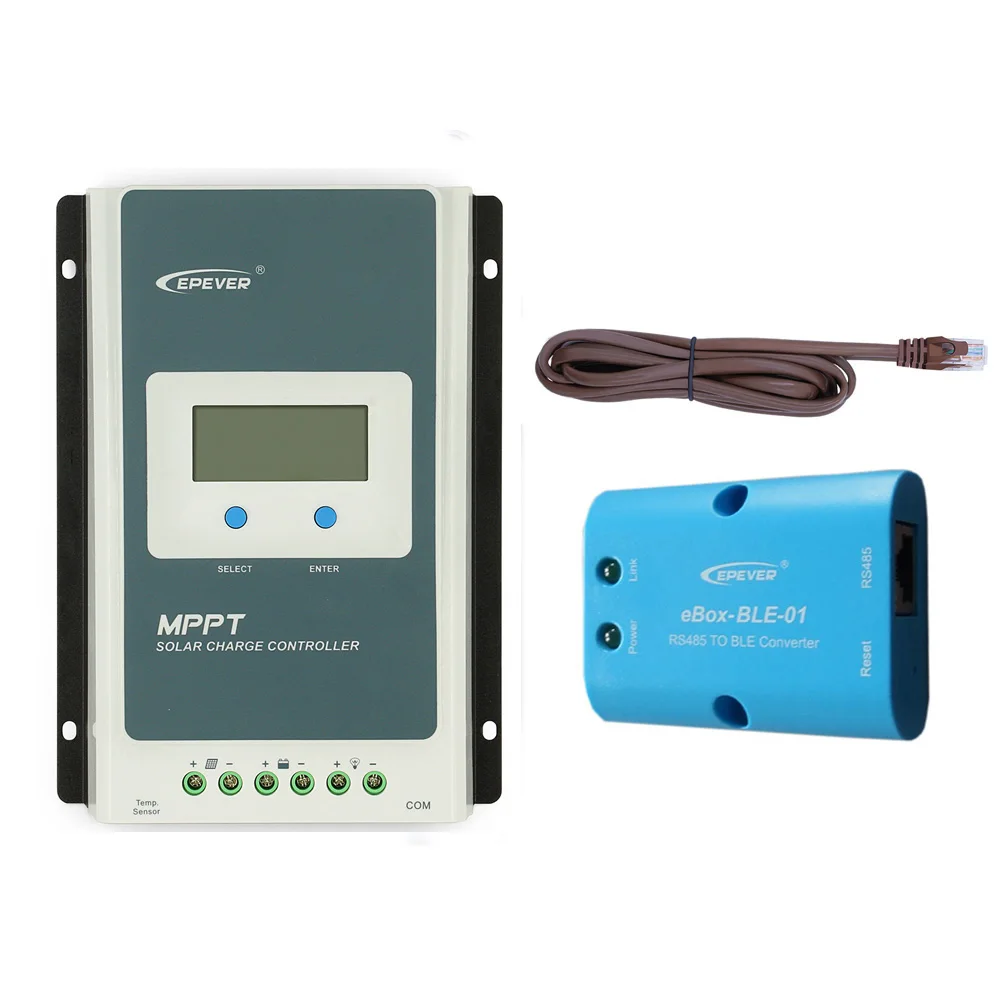

The solar charge controller offers real-time energy functionality and is able to be monitored and set via both a phone app and software. To protect the unit, it is also crafted with many protection systems, like overheating power reduction. It is also designed with multiple load work modes. It is powered by either lead-acid or lithium-ion batteries.



0/5 (0 Reviews)
Brand Name

EPever

Certification

CE

Origin

CN(Origin)

Model Number

3210AN

is_customized

Yes

Application

Thermal Controller

Maximum Current

30A

Item

Tracer 3210AN

Nominal system voltage

12/24VDC Auto

Rated charge current

30A

Rated discharge current

30A

Battery voltage range

9V~2V

Max. PV VOC

150V

MPP Voltage range

VBAT +2V~90V

Max. PV input power

260W/12V 520W/24V

Self-consumption

<20mA(12V) <16mA(24V)

Communication

RS485(RJ45 interface)
